Rumah /Produk/Pengukur Tekanan Kapiler/Stainless Steel Capillary Pressure Gauge with 1.5" Dial Size and 0-6bar Pressure Range for Wall-Hung Boilers

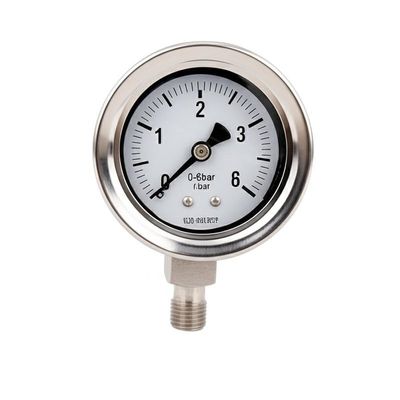

Stainless Steel Capillary Pressure Gauge with 1.5" Dial Size and 0-6bar Pressure Range for Wall-Hung Boilers

1
MOQ
DEPENDS ON TOTAL QUANTITY
harga
Stainless Steel Capillary Pressure Gauge with 1.5" Dial Size and 0-6bar Pressure Range for Wall-Hung Boilers
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Bahan: Baja tahan karat
Menyoroti:

1.5" Dial Size Capillary Pressure Gauge

,

0-6bar Pressure Range Pressure Gauge

,

1/8" Connection Size Manometer
Informasi dasar
Tempat asal: Qingdao Shandong Tiongkok
Nama merek: wwka
Sertifikasi: CE,ISO9001
Nomor model: Y-100
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kantong plastik bagian dalam, karton ekspor luar.
Waktu pengiriman: 7-25 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 30K PER BULAN
Deskripsi Produk
15. Capillary Pressure Gauge
Product Overview

Precision capillary pressure gauge designed for accurate pressure measurement in various heating and fluid systems.

Key Features
  • Ideal for wall-hung boilers, small/medium boilers, and hot water storage tanks
  • Compact 1.5" (40mm) dial size for space-efficient installation
  • Durable construction with plastic case and brass internal components
  • Multiple pressure range options available (0-4bar, 0-6bar standard)
  • Versatile connection options including metric, NPT, BSP, and BSPT threads
  • Includes back-mounted copper capillary for flexible installation
Technical Specifications
Application Wall-hung boilers, small/medium boilers, hot water storage tanks
Dial Size 1.5" (40mm)
Materials Case: Plastic | Internal & Thread: Brass | Window: Plastic
Pressure Range 0-4bar, 0-6bar (custom ranges available in Mpa, psi, kg/cm²)
Connection Size 1/8", 1/4" (Metric, NPT, BSP/G/PF, BSPT/ZG/PF)
Mounting Back-mounted with copper capillary
Accuracy 4% or 2.5%
Stainless Steel Capillary Pressure Gauge with 1.5" Dial Size and 0-6bar Pressure Range for Wall-Hung Boilers 0 Stainless Steel Capillary Pressure Gauge with 1.5" Dial Size and 0-6bar Pressure Range for Wall-Hung Boilers 1
