Rumah /Produk/alat ukur tekanan suhu tinggi/High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size

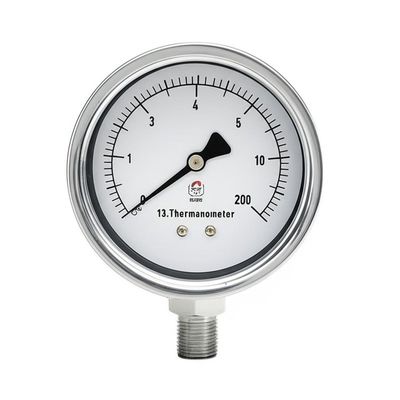

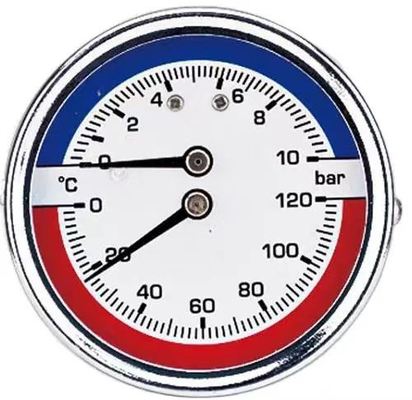

High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size

1
MOQ
DEPENDS ON TOTAL QUANTITY
harga
High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Bahan: baja hitam atau baja tahan karat
Menyoroti:

2.5"-4" Dial Size Thermomanometer

,

0-16 Bar Pressure Range High Temperature Pressure Gauge

,

1/4"-1/2" Connection Size Pressure Gauge
Informasi dasar
Tempat asal: Qingdao Shandong Tiongkok
Nama merek: vvca
Sertifikasi: CE,ISO9001
Nomor model: Y-100
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kantong plastik bagian dalam, karton ekspor luar.
Waktu pengiriman: 7-25 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 30K PER BULAN
Deskripsi Produk
13. Thermomanometer
Product Description

The Thermomanometer is a precision instrument designed for measuring both pressure and temperature in industrial applications.

Technical Specifications
  • Dial Size: 2.5" (63mm), 3" (80mm), 4" (100mm)
  • Material:
    • Case: Black steel, Plastic (Chromed plated)
    • Internal and Thread: Brass
    • Window: Glass, Plastic
  • Pressure Range: 0-2.5/4/6/10/16 bar, Mpa
  • Temperature Range: 0-120°C, 0-160°C
  • Connection Size: 1/4", 3/8", 1/2" Metric Thread, NPT, BSP(G,PF), BSPT(ZG,PT)
  • Mounting: Bottom, Back
  • Accuracy: 2.5%, 2%, 1.6%
  • Pressure Limitation:
    • Steady: 3/4X full scale value
    • Fluctuation: 2/3X full scale value
    • Short time: full scale value
High Temperature Pressure Gauge Thermomanometer with 2.5"-4" Dial Size, 0-16 Bar Pressure Range, and 1/4"-1/2" Connection Size 0
